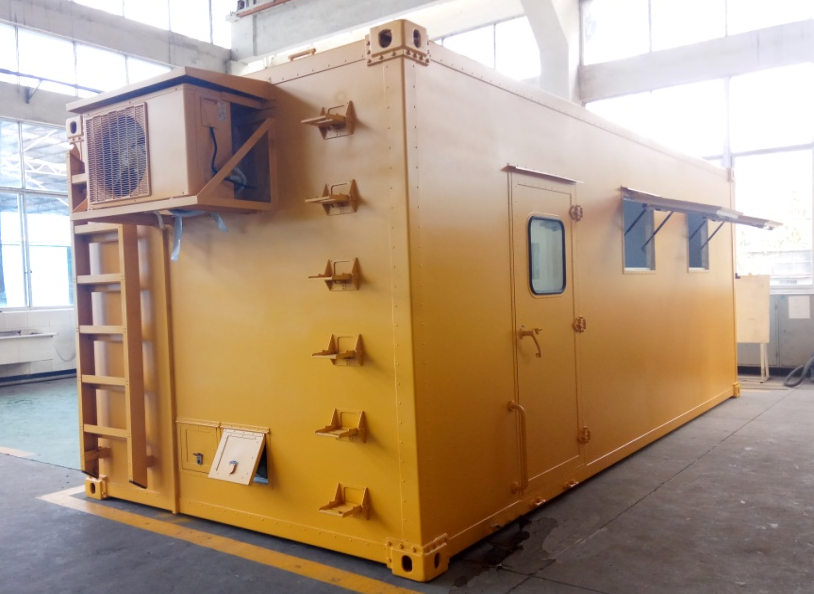

Emergency command extension cabin mainly features on video, voice and data transmission between field of operation and command centre. Gathering, monitoring, coding and converting video feeds on-site; provide computer LAN (wireless and cable) connection and networking connection with other emergency database platforms.

The cabin is capable of extending towards both sides for larger operational space; accommodating communication & command system, lighting system, power supply system, water supply & drainage system, ventilation system, living accommodation system, etc.

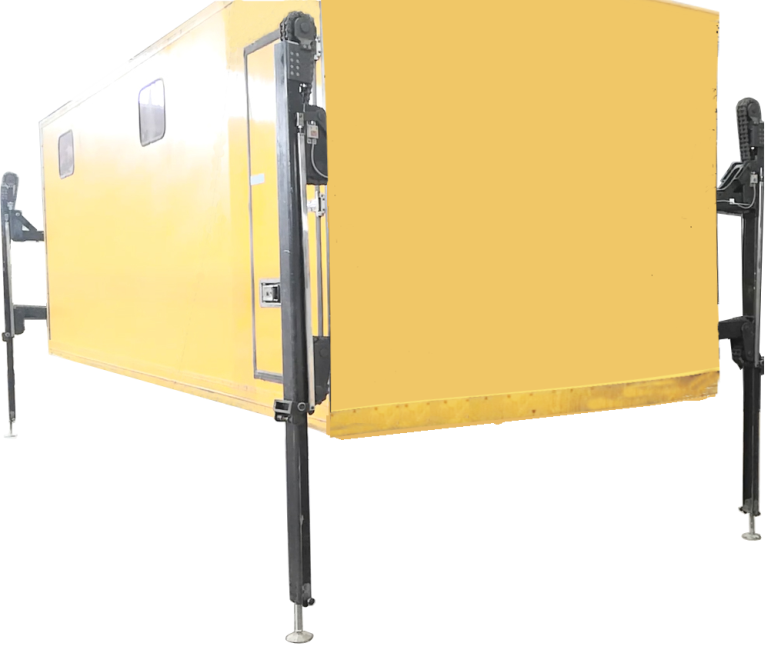

Automatic extension cabin is equipped with fully-automatic unloading system and travelling mechanism, it can achieve loading & unloading from transport and short range travelling without the help from hoisting devices. The cabin is fitted with 10KW silent generator set, high power lighting system (with collapsible post), 3KW air conditioner, reaching 35 square meters after extension deployment, can be used as emergency command & communication (meeting) cabin and accommodation cabin.

Features of Automatic Extension Cabin:

1. Fitted with fully automatic lifting mechanism, capable of self-levelling, thus realizing cabin loading/unloading operation with its transport [7m truck with open-top hopper (cabin length included) and container semi-trailer transport];

2. Cabin deployment/retraction operation completed within 10 min;

3. Fitted with travelling mechanism for short distance movement;

4. Structures can be either panel cabin or skeleton framework cabin, etc.;

5. The cabin is capable of water-proof, fire-proof, lightning-proof, heat-insulated (performance may vary between different cabin structures), shock-proof, acid/ alkali resistance, corrosion resistance, salt spray resistance, etc.

6. Fitted with hoisting mechanism and slide mechanism.

Automatic multifunctional emergency cabin is installed with fully automatic unloading system and travelling mechanism, it can achieve loading & unloading from transport and short range travelling without the help from hoisting devices. The cabin can be fitted with silent generator set with capacity from 100KW to 200KW, high power lighting system (with collapsible post) at 7~9m, high power drainage pump, emergency communication system, remote control system, providing solutions for emergency power supply, lighting, flood relief, drainage, draught relief, field engineering operations, etc.

1. Fitted with fully automatic lifting mechanism, capable of self-levelling, thus realizing cabin loading/unloading operation with its light truck transport;

2. Fitted with travelling mechanism for short distance movement;

3. Structures can be either panel cabin or skeleton framework cabin, etc.;

4. The cabin is capable of water-proof, fire-proof, lightning-proof, heat-insulated (performance may vary between different cabin structures), shock-proof, acid/ alkali resistance, corrosion resistance, salt spray resistance, etc.

5. Fitted with hoisting mechanism and slide mechanism.

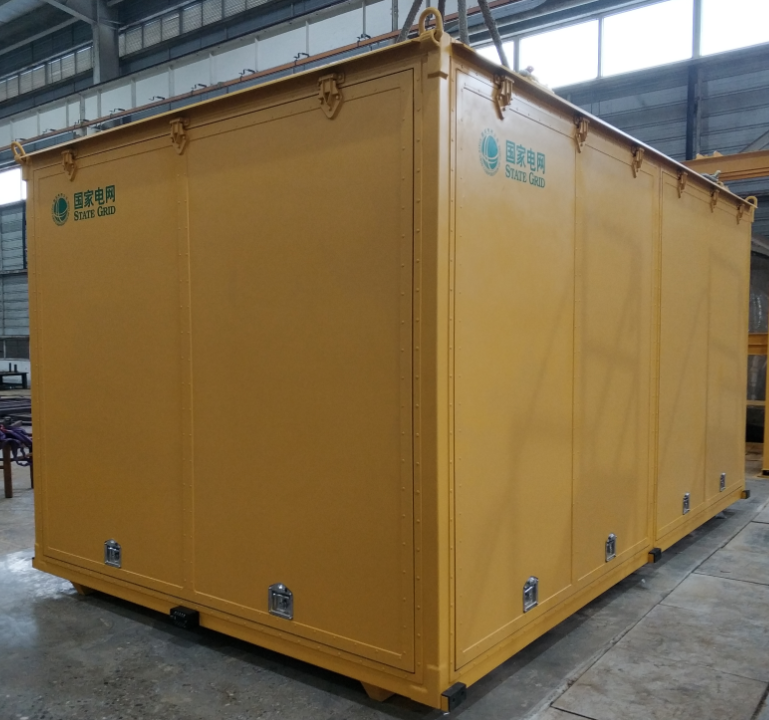

The communication command cabin is mainly suitable as field communication command conference rooms, work rooms and item storage. The cabin can work in harsh and complex emergency environments. It has good performance against moisture, salt spray, mildew, heat, water, etc., and can carry the basic assembly tools, maintenance spare parts, support equipment of the system, etc. It improves the mobility of emergency equipment and can meet the requirements of road and railway transport.

Features:

1. Dimensions: (6050～12190)×2440×2590mm, applicable to standard container semi-trailers and flatbed trucks;

2. Optional military grade cabin boards, skeleton cabin frame, and other structures;

3. Optional communication, office, lighting, temperature control, power supply and other systems;

4. Modular design for needs of emergency command,, which can be integrated/stored and fixed in a modular manner, for easy transport;

5. Ambient temperature, solar radiation, working altitude, temperature, salt spray, sand dust, rain, snow, fog, transportability and other indicators all meet the requirements of the national and military standards.

The storage and transportation cabin of the emergency command unit is used to store and transport emergency command tent and supplies for 20 people. The modular design facilitates convenience for redeployment and realizes mobile 5S management of the items in the tent, featuring easy maintenance and safekeeping.

Features:

1. The cabin is composed of a number of small equipment boxes and removable antennas, which are convenient for storage and transport, with rapid and flexible deployment. It is a mobile command station that realizes remote transmission of emergency communication services, short-range communication coverage and wireless access functions (wireless trunking phones not included);

2. It can be used with a 5×8m command tent and a 3×6m equipment storage/duty tent. Standard video conference system, communication transmission system, power supply system, office system, etc. can all be configured in the tent stored in the cabin; executing emergency command operation to the disaster site under emergency conditions, and transmit real-time video communication and related files with the HQ to facilitate the command of the operation on emergency site;

3. Field emergency command is equipped with independent power supply system, and the power system features UPS uninterrupted power supply to ensure the normal operation of the equipment;

4. Cabin storage can be provided with shock absorption device according as needed and provided with reliable fixture, ensuring easy access and sorting, realizing customized management on the move or 5S management.

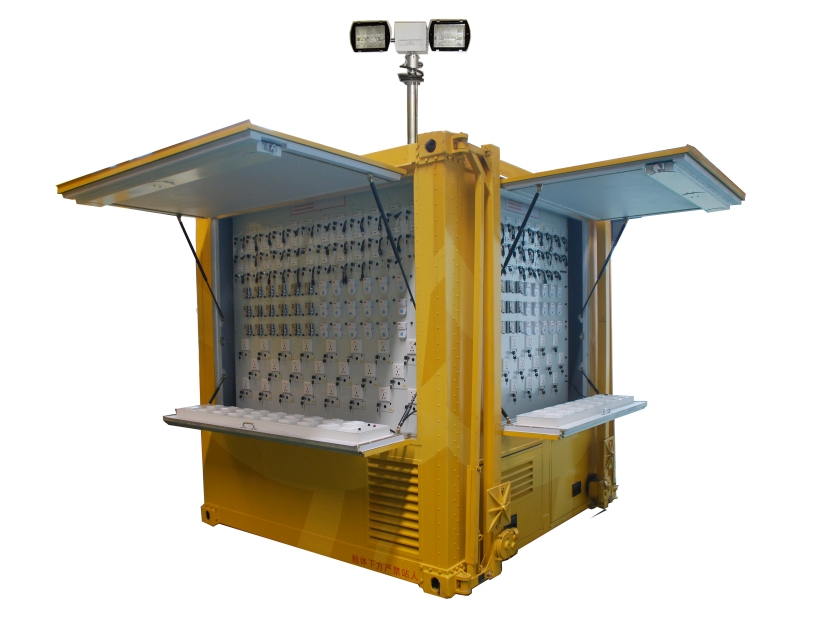

The cabin also has the sytem functions as an emergency charging pick-up cabin, and there are no less than 350 charging ports;It can be equipped with a 5-12KW generator, overthead retractable lighting beacon, and large starage space.

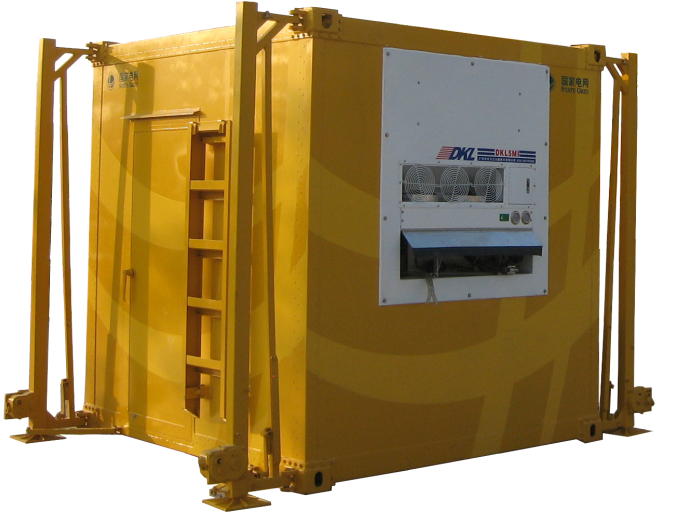

The cabin is suitable for field living andoperation needs, transporting frozen and refrigerated food in the hot summer, and has separate refrigeration and freezing areas, which can achieve two refrigerration temperatures; separate contol system, convennient operation; equipped with labor-saving, fast and easy-maintained gear-type lifting mechanism; and can be self-mounted and unloaded on its transport.
