Self loading and unloading weapon platform

Features:

1. Daily pickup truck transportation;

2. Manpower or E-power loading and unloading;

3. Rotate weapon platform;

4. Custom bracket, armor, etc.;

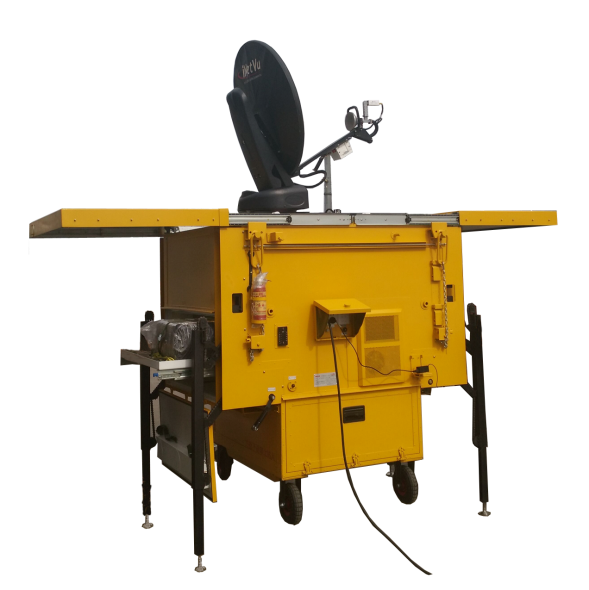

The communication command cabin is mainly suitable as field communication command conference rooms, work rooms and item storage. The cabin can work in harsh and complex emergency environments. It has good performance against moisture, salt spray, mildew, heat, water, etc., and can carry the basic assembly tools, maintenance spare parts, support equipment of the system, etc. It improves the mobility of emergency equipment and can meet the requirements of road and railway transport.

Features:

1. Dimensions: (6050～12190)×2440×2590mm, applicable to standard container semi-trailers and flatbed trucks;

2. Optional military grade cabin boards, skeleton cabin frame, and other structures;

3. Optional communication, office, lighting, temperature control, power supply and other systems;

4. Modular design for needs of emergency command,, which can be integrated/stored and fixed in a modular manner, for easy transport;

5. Ambient temperature, solar radiation, working altitude, temperature, salt spray, sand dust, rain, snow, fog, transportability and other indicators all meet the requirements of the national and military standards.

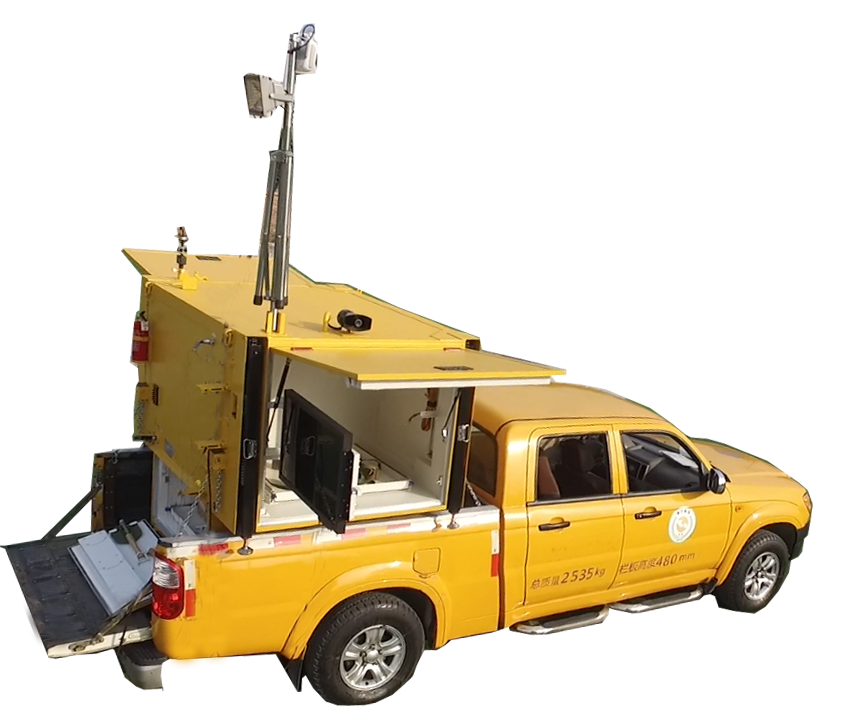

After the occurrence of natural disasters or major safety accidents, on-site UAV reconnaissance as a first response operation has become a generally accepted rescue measure. UAV features flexibility, convenience, fast response, strong manoeuvrability and wide field of vision. For disaster and accident site investigation, it can quickly conduct dangerous situation observations and on-site inspections, and timely feedback the on-site situation to operation command through video feeds, providing accurate basis for decision-making. At the same time, UAVs are capable of repeatedly searching the disaster-hit area, once survivors are located, they can coordinate with rescue operation and ensure safety of survivors. The diversity of equipment on-board UAV greatly meets its application requirements in rescue and disaster relief. UAV can be equipped with infrared night vision device or thermal vision, which can lock the location of the survivors at night, deploy small self-rescue equipment along with small amount of food and drinking water to improve the chances of survival of the trapped survivors and gain more time for rescue. The high resolution and high mobility of UAV at low altitude remote sensing, can be used for disaster or accident outcome assessment. The wide application of UAVs in rescue and disaster relief has great and far-reaching significance.

Features:

1. The cabin can be platform for battery-powered small fixed-wing, hexa-rotor, quad-rotor or other UAVs to meet the performance requirements under various circumstances;

2. The cabin can also be used as a vehicle-mounted automatic take-off and landing platform for tethered UAV, and can store its entire system;

3. Generator for charging and charging & distribution system are fitted for continuous uninterrupted UAV operation; it can be connected to city power and vehicle power supply (12v, 24v), and can be equipped with a solar power supply module;

4. Safe and reliable transportation of functional equipment and accessories. Both centralized and decentralized transportation can be supported, ensuring the high adaptability of the equipment;

5. Cabin roof can be used as UAV landing pad;

6. Cabin roof is fitted with flight control antenna, mounted on manually-collapsible mast;

7. Equipped with high-definition 32-inch vehicle-mounted LCD display terminal.

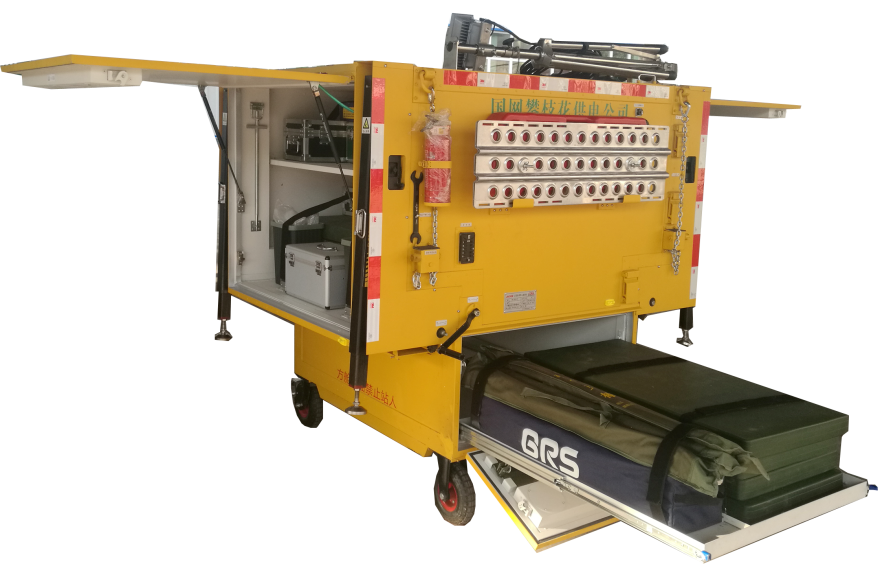

The storage and transportation cabin of the emergency command unit is used to store and transport emergency command tent and supplies for 20 people. The modular design facilitates convenience for redeployment and realizes mobile 5S management of the items in the tent, featuring easy maintenance and safekeeping.

Features:

1. The cabin is composed of a number of small equipment boxes and removable antennas, which are convenient for storage and transport, with rapid and flexible deployment. It is a mobile command station that realizes remote transmission of emergency communication services, short-range communication coverage and wireless access functions (wireless trunking phones not included);

2. It can be used with a 5×8m command tent and a 3×6m equipment storage/duty tent. Standard video conference system, communication transmission system, power supply system, office system, etc. can all be configured in the tent stored in the cabin; executing emergency command operation to the disaster site under emergency conditions, and transmit real-time video communication and related files with the HQ to facilitate the command of the operation on emergency site;

3. Field emergency command is equipped with independent power supply system, and the power system features UPS uninterrupted power supply to ensure the normal operation of the equipment;

4. Cabin storage can be provided with shock absorption device according as needed and provided with reliable fixture, ensuring easy access and sorting, realizing customized management on the move or 5S management.

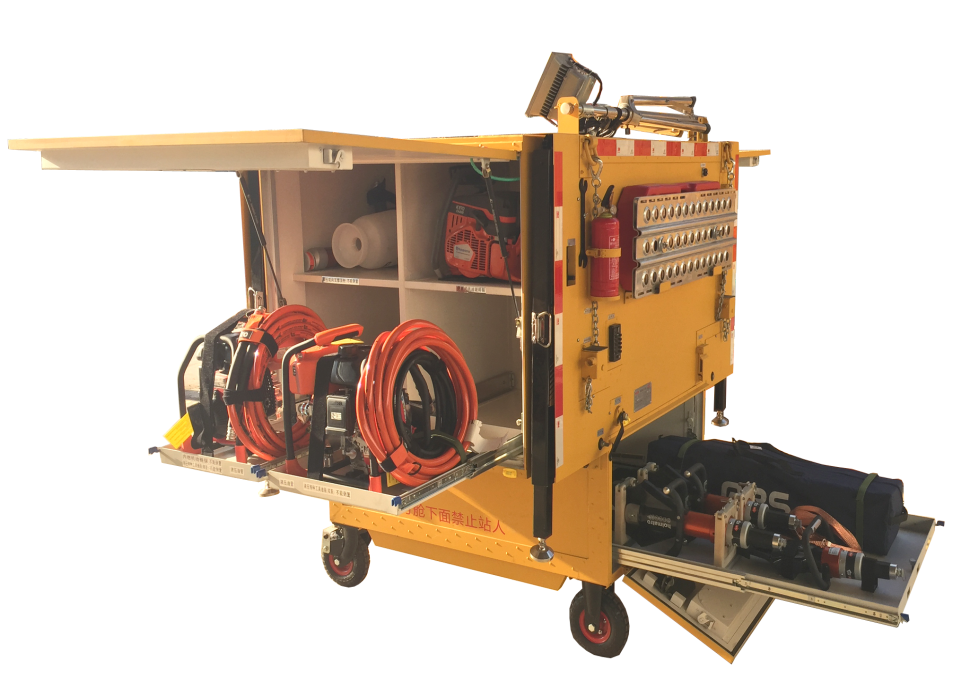

Emergency rescue equipment is the combat weapon for emergency rescue personnel, which plays a decisive role in the success or failure of emergency rescue. To improve emergency rescue capabilities, ensure the efficiency of emergency rescue work, quickly resolve emergency situation, and contain incidents, emergency rescue personnel must be equipped with professional emergency rescue equipment. For rescue operations of earthquake, meteorological disasters, geological disasters and other accidents or disasters like fire and mining accidents, professional hydraulic shearing, expansion, jacking equipment, demolition, crushing, cutting and repair tools, detection equipment, personal protection rescue tools, etc. all play a vital role in emergency rescue. The use of pick-up cabins to store and transport such equipment is convenient for routine maintenance and management, which prevents equipment loss, and is convenient for centralized transportation and use.

Features:

1. The cabin is comes with a generator to meet the power demand for equipment and rescue operations on-site;

2. Equipped with special hydraulic tool oil pump (pump station) to meet the power supply of hydraulic shearing, expansion and jacking equipment;

3. It can be fitted with detection, protective equipment and maintenance tools as needed;

4. The roof of the cabin can be equipped with manual retractable LED searchlight or mobile lighting equipment;

5. Well-rounded rescue equipment configurations to meet the professional needs of emergency rescue;

6. Tailored for equipment features for safe and reliable transport of equipment and easy access.

The mobile cleaning and drying cabin can meet the emergency disposal needs of power supply facilities which were filled by muddy water due to floods. It can quickly clean the sand on the surface of cabinets, equipment, transformers, electrical switches, cables, etc., and drying them with hot air. The muddy water can be collected after cleaning. This is a professional support equipment guaranteeing timely and safe resumption of power supply. The cabin is equipped with generators, high-pressure cleaning device, high-power blower, hot blower, suction (water extraction) cleaner, clean water tank, light and related auxiliary appliances. Equipped with a self-loading and unloading system, it is suitable for pick-up transportation, featuring mobility, agility and ease of use.

Features:

1. Generator output power: 220V 50Hz, 2KW;

2. Adjustable high-pressure cleaner for washing muddy water on the surface of equipment, switches, etc.;

3. The high-power blower can quickly blow off the water droplets on the surface;

4. The hot blower can quickly dry the surface;

5. The suction (water extraction) cleaner can recover the muddy water on site;

6. The collapsible lighting beacon can meet the lighting needs of on-site operations;

7. 250-litre stainless steel clean water tank can store cleaning water for washing operation;

8. Equipped with cleaning materials and generic maintenance tools.

Taking advantage of the flexible and easy loading and unloading operations of the pick-up cabin, portable fire-fighting equipment, tools, equipment, etc. can be integrated into the cabin. The fire-fighting pick-up cabin can be used for rapid fire rescue operations in narrow areas that cannot be reached by large or heavy equipment.

Features:

1. The cabin space is reasonably arranged with needed fire-fighting equipment, tools and instruments;

2. Lighting equipment, warning lights, megaphones, cameras, etc. can be mounted outside the cabin;

3. Multiple transport methods for all kinds of road conditions;

4. Functional layout for easy resupply and maintenance;

5. The item fixture in the cabin is reliable, featuring easy access and easy to clean, realizing customized management on the move or 5s management.

Emergency rescue equipment is the combat weapon for emergency rescue personnel, which plays a decisive role in the success or failure of emergency rescue. To improve emergency rescue capabilities, ensure the efficiency of emergency rescue work, quickly resolve emergency situation, and contain incidents, emergency rescue personnel must be equipped with professional emergency rescue equipment. For rescue operations of earthquake, meteorological disasters, geological disasters and other accidents or disasters like fire and mining accidents, professional hydraulic shearing, expansion, jacking equipment, demolition, crushing, cutting and repair tools, detection equipment, personal protection rescue tools, etc. all play a vital role in emergency rescue. The use of pick-up cabins to store and transport such equipment is convenient for routine maintenance and management, which prevents equipment loss, and is convenient for centralized transportation and use.

Features:

1. The cabin is comes with a generator to meet the power demand for equipment and rescue operations on-site;

2. Equipped with special hydraulic tool oil pump (pump station) to meet the power supply of hydraulic shearing, expansion and jacking equipment;

3. It can be fitted with detection, protective equipment and maintenance tools as needed;

4. The roof of the cabin can be equipped with manual retractable LED searchlight or mobile lighting equipment;

5. Well-rounded rescue equipment configurations to meet the professional needs of emergency rescue;

6. Tailored for equipment features for safe and reliable transport of equipment and easy access.

The large flow emergency drainage pick-up cabin is equipped with a portable high-power sewage pump (rated flow 400 m³/h, rated lift 8 meters, maximum lift 12 meters), pump control system, generator system, 4G module system, lighting system and support system. It is a highly mobile, highly reliable emergency drainage equipment, which can be widely used in outdoor operations, urban flood control, agricultural drought relief, urban engineering and emergency drainage needs.

Features:

The emergency supply storage and transportation cabin is used as a storage unit, and the storage space in the cabin can be allocated according to different needs. The storage can be divided according to the functional needs of field construction operations or emergency rescue. The storage system is configured, maintained and resupplied according to functions to ensure sufficient supply during transportation and easy redeployment.

Features:

1. The storage unit is flexible and can be customized flexibly according to actual needs;

2. The internal support structure of the storage unit is flexible and can be changed into any combination;

3. Multiple transport methods to adapt to a variety of complex road conditions;

4. Functional layout for convenient resupply and maintenance;

5. The items in the cabin can be reliably fixed, for easy access and cleaning, realizing customized and 5S management on the move.

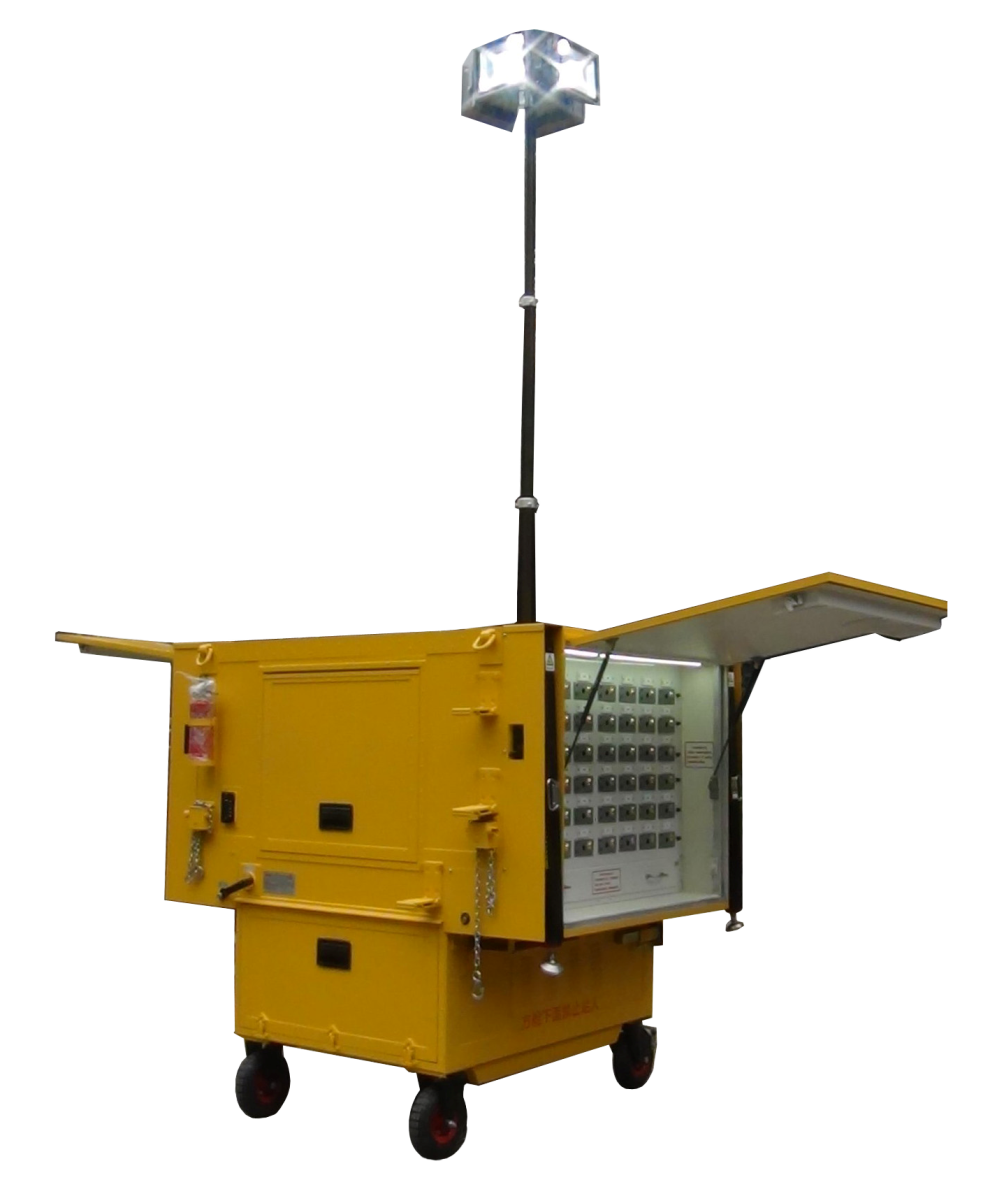

Emergency charging and lighting pick-up cabins are able to provide fast charging for mobile phones, drones, walkie-talkies, flash lights, battery (group) packs, laptops, cameras, radios, portable flash lights and other electric devices that require charging, as well as lighting service on-site in the event of disasters, power failures, power shortages, etc.

Features:

1. Output power: 220V 50Hz, ≤5KVA;

2. Power supply: equipped with 1 Kaper 2KVA silent hand-started digital silent gasoline generator, 220V city power input socket (optional between Kaper 3KVA electric start ultra-silent digital generator, 5KW gasoline generator), 500W to 2000W mobile emergency lithium battery power supply, solar power supply system, etc.;

3. The three major charging methods (USB fast charging, AC220V/50HZ charging, battery charging) cover most of charging currents for mobile terminal electronic products in and out of China, and can simultaneously meet the rapid charging demands for more than 150 mobile terminals;

4. The USB fast charging sockets are designed with seven protections: overcharge protection, over-discharge protection, over power protection, over-current protection, over-voltage protection, temperature protection and safety; equipped with smart charging chip, it can automatically detect charging equipment and match best current with 5V output. Supports 5V 2.4A fast charging; supports all digital devices, mobile phones, tablets, cameras, etc. from iOS/Android;

5. Each functional area can be provided with independent power supply, and comes with individual switch and safety devices: (small) drawers with locks, (large) cabinets for storing charging equipment (except for battery electrical interfaces and draw-out charging interfaces), which prevents loss of items;

6. The cabin is equipped with a built-in emergency lighting beacon: with pneumatic lifting mechanism up to 3.8 ~ 4.5 meters,

7. There is a separate power control and protection switch in the cabin, with emergency manual power-off function;

8. Storages: trays or brackets with self-locking slide rails can be configured according to requirements, load bearing capacity at 100-250KG, for easy fixture and access to items.

Water purification pick-up cabin is suitable for fresh water sources such as field reservoirs, lakes, rivers, pits and ponds. It is fitted with three-stage pre-treatment filtration and reverse osmosis device to remove impurities, bacteria, viruses, heavy metals, organic components and other harmful substances in water. The water treatment capacity is 500L per hour, and the purified water quality can meet the requirements of "Standards for Drinking Water Quality" (GB5749-2006). The effluent is pure and can be used directly for drinking, canteen provision of dishes and soup.

Features:

1. The source water is freshwater sources from wild reservoirs, lakes, rivers, pits and ponds; the purified water quality can meet the requirements of “Standards for Drinking Water Quality" (GB5749-2006);

2. Equipment water purification output≥500L/H (25℃);

3. The equipment has water source shortage protection and low pressure protection. In case of water source shortage or insufficient pump pressure, automatic shut-down and start safety will be triggered;

4. When the water level of the clean water tank is full (there is a water level detection device that can observe or read the water level), the equipment can automatically stop and cannot be started; when the water level of the clean water tank is at empty or lower than the upper limit, the equipment, when connected with power, can start automatically;

5. The equipment comes with necessary warning signs to remind the operator of important or necessary operations;

6. The replacement of fragile and consumable parts (filter element, reverse osmosis membrane, etc.) is simple, convenient and easy. The fragile and consumable parts can be directly replaced in the cabin. The equipment does not need to be moved out of the cabin in case of non-repair maintenance works;

7. Materials and equipment in contact with water all meet the relevant requirements of laws on food safety;

8. The cabin can be operated at the water source point, or conduct on-site purification treatment after taking water from other places. The cabin also comes with corresponding equipment and containers for taking water;

9. The equipment is simple to operate and easy to maintain.

Pick-up cooking cabin has combined the traits of multiple field cooking cabin. With integrated stainless steel kitchen utensils and energy-efficient stoves; featuring simple operation, safe & reliable, good environment adaptability and less prone to altitude effect (suitable for high altitude operation environments). The cabin is featured with all sorts of cooking methods, 2 operators can finish production of main courses and side dishes for 50 people in 1.5 hours, which lead to its nickname “multi-functional mobile kitchen”. It is a logistic support equipment suitable for armed forces, police, electricity workforce, mining operators, prospecting operations, communication construction, club camping & training, field engineering construction and disaster relief.

Features:

1. Capable of water supply and electricity supply (diesel generator power supply and external power supply), equipped with stoves, cooking utensils and containers for all cooking, seasoning and preparation operations;

2. Catering capacity: 2 operators can finish production of main courses and side dishes for 50 people in 1.5 hours;

3. Containers, utensils, tableware, etc. for serving 50 people;

4. The stoves are designed to be easy to control air flow, with high heat concentration and wind-proof capabilities, can be used on-board of vehicles or detached from the cabin; stoves are featured with safe operation, energy conservation, easy operation, stable performance, good adaptability and fulfil safety requirements;

5. All instruments, piping, containers, utensils, tableware, etc. have met with relevant requirements of food safety laws and are easy to clean and maintain;

6. Operable altitude ≤3600m;

7. Time of deployment and retraction: ≯10min;

8. In extreme situations, main components of stoves, kitchenware, tableware and materials can be split and transported manually.

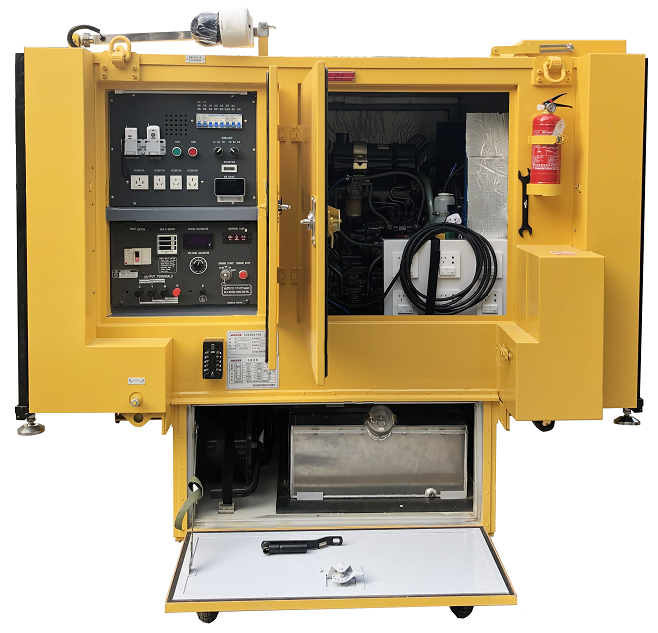

The auto-unloading emergency power generation pick-up cabin is equipped with a manual/auto (manual or electric) self-loading and unloading system, which is suitable for places with demands for small-scale centralized power supply for command & communication, lighting, medical services, equipment power, such as rescue sites, front line headquarters, temporary medical stations, disaster-stricken resettlement points, etc. Equipped with 30～50KW diesel generator set produce in or outside of Chine, featuring quiet design, low noise, can provide 220V and 380V power output; fuel tank volume at 120 litres, capable of continuous operation about 15 hours; built-in (50W～120W) * 4 LED pneumatic collapsible lighting beacon; equipped with a mobile or drawer type emergency charging board; an intelligent control system that can remotely control the start and stop of the generator and monitor the running status of the generator; equipped with 4G or 5G modules to achieve audio and video gathering and transmission system functions.

Features:
